Special solutions

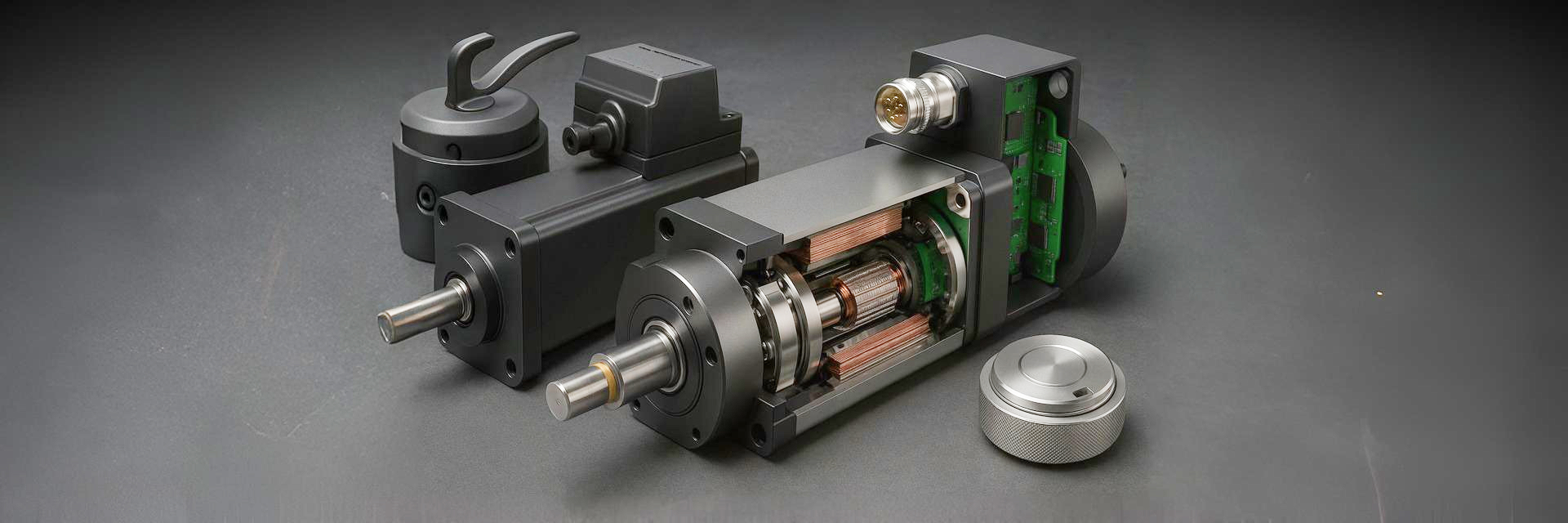

Motors are directly implemented to Drive, without any need for aditional coupling. This helps to reduce weight and dimensions of whole solution. Main type of motor is synchronous motor with permanent magnets.

Standard versions of motor implemented in Drive are 24V, 320V and 560V. Low voltage range is possible to modify to 36V 48V and 60V, high voltage to 680V. These motors are custom solution and they are modified to suit our customer. If there is special requirement or our solution is not suitable for you we can implement any frameless motor and calculate final parameters of Drive.

Actuators with cycloidal gearbox or planetary gearbox excel in terms of precision positioning however this would not be possible without the implementation of position feedback sensors.

Our specialists will analyze your application and find the best solution in terms of accuracy, precision measurement, robustness as well as compatibility with your control system.

Our portfolio includes sensors from basic feedback systems used in most servo drives such as incremental encoders to next generation protocol encoders such as (EnDat 2.2, Hiperface DSL, BiSS-C). Technical parameters like resolution, sensor protocol, single vs. multiturn are specified in the process of development of the custom product. Supported encoder systems: Resolver, HIPERFACE®, HIPERFACE® DSL, EnDat 2.2, BiSS Interface, DRIVE-CLiQ, FANUC.

Brakes in our actuators are mostly used in static applications which statically hold the load in absence of power. Usually is used electromagnetic brake, where in currentless state (without connected DC voltage) the armature becomes engaged with brake disk and after application of DC voltage to brake, magnetic field is neutralized and brake released to free rotation of actuator.

Electromagnetic brakes are also used in dynamic applications where actuator use brake for deceleration or as safety brake, but these application requires different calculation and implementation to the actuator. Standard in our product range is 24 VDC electromagnetic brake for static applications, but we can implement also 12 VDC electromagnetic brakes, brake with handle release or any other brakes developed for servomotors.

Our electrical and mechanical engineering team can adjust most of the connection possibilities according to the requirements of the end customer.
